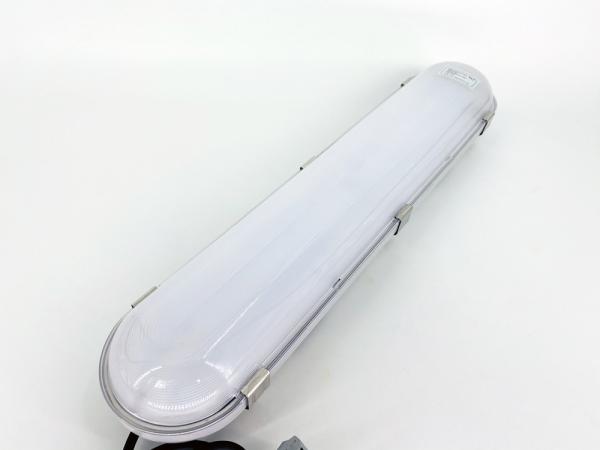

IP66 LED Tri-Proof Light R/G/B/3000K/4000K Vapor Tight Lights, 600/1200mm
Product Description:
1. Input Voltage:AC220-240V,50/60Hz.
2. Driver:OSRAM, driver or other options.
3. Reflector:MCPCB or PCB for your option.
4. Body and diffuser could meet the IK08,and 850 degree glow wire test requirement.
5. Perfect replacement for the whole set of T8 fluorescent lighting fixture.
6. Save up to 60% in electricity consumption compared to fluorescent lighting fixture.
7. Lifetime: 3 Years.
8. Lightweight body material ,corrosion resistant,waterproof and dustproof.
9. Easy Installation with fast connection design,shorten the installation process and save labor cost.
10. It could be fitted with the Microwave sensor, fitted with the Emergency battery to meet the requirement.
Product range:
LED indoor light: LED spot light, LED bulb, LED tube, LED down light, LED ceiling light, LED track light, LED table light and LED panel light.
LED outdoor light: LED flood light, LED high bay light, LED street light, LED tunnel light and LED gas station light.
Specifications: LED Tri-Proof Tube Light
| Model No. : | MF12-600 |
| Lens : | Opal and Clear are available |
| CCT : | 2700K - 6500K |
| Lumen output (lm): | 100lm/w |
| Certificate: | CE-LVD EMC ROSH GS CB ENEC SAA C-TICK |
| Power : | 12W |
| Input Voltage : | AC220-240V, 50/60Hz |
| CRI : | >80 |
| Beam Angle : | 120° |
| Driver type : | Lifud and other options |
| Operating Ambient Temperature : | -20℃ - 40℃ |
| Operating humidity (℃) : | 10% - 90% |
| Warranty : | 3 years or 5 years |
| IP rating : | IP65 |
| IK : | 08 |
Product Details : MF12-600
Features of LED tri-proof light :
1. Offering Emergency battery : 10W 90min or others are available
Driver : LiFud Driver, OSRAM, driver or other options.
Can be fitted with the Microwave sensor , PIR sensor
2. Green, Red, Blue Color temperature are available.
Product Dimension(mm):
600mm, 1200mm, 1500mm are available.
Installation Diagram :
A, Insert dia 6mm expansion pipe in the wall,fix the mounting bracket by M4 screw.
B, 1. firstly open the clips like picture A
2. Secondly take off the diffuser like picture B
3. Hold on the stainless fixator, take off the gear tray like picture C.
C, 1. Loosen the nut of the cable gland, put the cable through the cable gland.
2. Connect the cable on the terminal block as below shown and tighten the cable gland.
D, 1. Tighten cable gland as below shown
2. Fix gear tray with housing
3. Close the diffuser
E, Fix the lamp on the wall.
Applications:
1. Supermarket
2. Parking Lot
3. Underground Parking
4. Warehouse
